Description

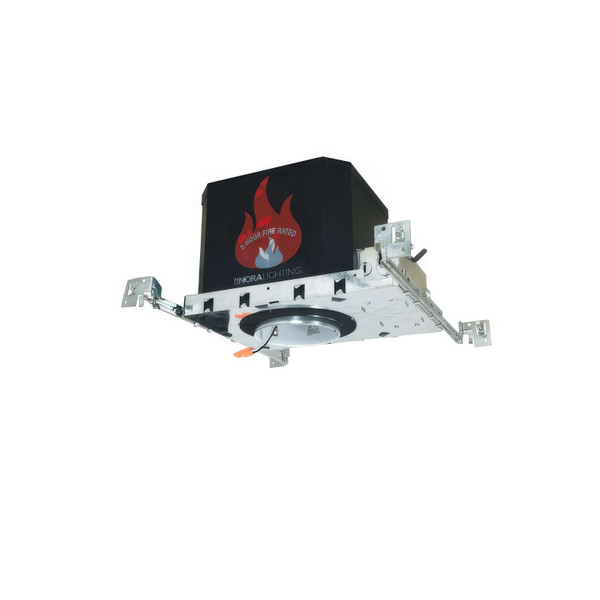

Specification grade fire-rated new construction housing. The double wall fixture incorporates a non-combustible fiber insulation to prevent passage of flames, toxic gases, ignitable gases into ceiling plenums. The cULus listed housing is rated for a minimum of 2 hours protection. The noncombustible fiber fill also acts as sound deadening material eliminating the transfer of sound between floors. Suitable for commercial, multi-family and residential applications.
Product Features
- Socket: Quick connect provided for electrical connection to LED compatible trim.
- Junction Box: Prewired 0.03" thick galvanized steel, with seven 1/2" knockouts, four Romex pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
- Minimum Clearance: IC housings are rated for direct contact and does not have any minimum clearance requirements
- Installation: Bar hangers are adjustable from 13-5/8" to 24-1/2" and can be repositioned 90 degrees
Dimensions:
Length: 12-1/2"
Width: 9"
Height: 7-7/8"
Listings:
UL Classified. Two Hour Fire Rating
cULus Damp Location w/ Feed Through
cULus Wet Listed (only with designated trims)
Meets or exceeds ASTM-283 Air-Tight Requirements
ANSI/UL 263
ANSI/UL 158
Specifications
| Brand | Nora Lighting |
| Size | 4" |
| Rating | Wet Rated |
| Energy Star | Yes |
| Title 24 | Yes |
| Width | 10.25 in |
| Height | 7.75 in |
| UPC | 732180493531 |
| SKU | NFBIC-4LMRATA |
