Description

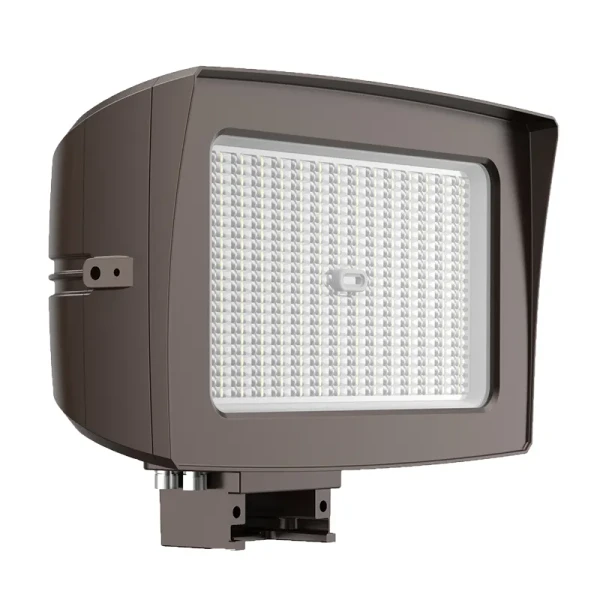

The LF4MAX Spec Signature Maximum-Feature Round-Back Flood Light is a high-performance LED lighting solution designed for demanding commercial, industrial, and outdoor applications. Available with selectable wattage options of 75W/100W/150W and 200W/240W/300W, this versatile fixture delivers powerful, uniform illumination while maximizing energy efficiency. Its durable round-back design is built to withstand harsh outdoor conditions, making it ideal for parking lots, building exteriors, sports facilities, signage, landscapes, and perimeter security. Engineered with advanced LED technology, the LF4MAX provides long-lasting reliability, reduced maintenance, and exceptional lighting performance for a wide range of professional applications.
Product Features
- Voltage: 480V
- Wattage/Lumens: Either
- 75W/100W/150W / 21000Lm
- 200W/240W/300W / 42000Lm
- Color Temperature: Adjustable: 3000K/4000K/5000K
- CRI: 70+
- Dimming: 0-10V Dimmable
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs
- Warranty: 7 Years
- Beam Angle: Adjustable: 135°x125°/120°x120°/90°x90°
- Finish: Bronze
- Light Includes: die-cast aluminum housing with powder coat finish; photocell included (with disconnect switch); 6KV lightning surge protection; multi-CCT & multi-power - the switches are on the bottom of the fixture.
- Cord Type: 6’ SJTW 18/3 AWG cable
- Effective projected areas (EPA’s) are: Front = 0.38 square feet, Side = 0.30 square feet, Face = 1.05 square feet
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Specifications
| Voltage | 480V |
| Dimmable | 0 - 10V |
| CRI | 70+ |
| Brand | Westgate |
| UPC | |
| SKU |
