Description

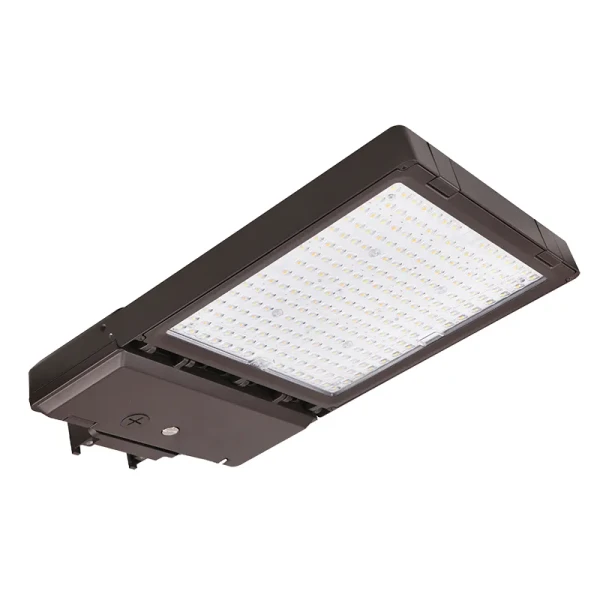

The LFXMAX Series Maximum Feature Area/Flood Light is a high-performance LED lighting solution engineered for demanding commercial, industrial, and municipal applications. Featuring selectable wattage options and customizable color temperatures, this versatile fixture delivers exceptional illumination while maximizing energy efficiency. Designed to be sensor and photocell ready, it offers enhanced control, reduced operating costs, and improved functionality for large outdoor spaces. Its rugged construction and advanced LED technology ensure long-lasting reliability, making it an ideal choice for parking lots, sports complexes, warehouses, building exteriors, roadways, and security lighting installations where powerful, uniform light output is essential.
Product Features
- Voltage: 480V
- Wattage/Lumens: Either
- 70W/100W/150W / 21400Lm
- 200W/250W/300W / 43500Lm
- 250W/350W/450W / 65250Lm
- Color Temperature: Adjustable: 3000K/4000K/5000K
- CRI: 80+
- Dimming: 0~10V Dimmable
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs
- Warranty: 7 Years
- Beam Angle: 155°x75° Type III
- Finish: Dark Bronze
- LED: Lumileds Luxeon 2835 High Flux LED
- Light Includes: die-cast aluminum housing with powder coat finish; cord type: 6’ SJTW 18/3 AWG cable; 10KV lightning surge protection; optic lens type III; multi-power - the switch is on the bottom of the fixture.
- Effective Projected Areas (EPA’s) are: Front = 0.38ft ², Side = 0.30ft ², Face = 1.05ft ²
- DLC premium & LED high-lumen flood lights.
- Solid state lighting technology for long life.
- No maintenance needed and high-efficiency.
- With Snap-on & Bolt Mounting Options for One- Person Installations. Select a Mounting Option (Sold Separately)
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Specifications
| Voltage | 480V |
| CRI | 80+ |
| Brand | Westgate |
| Product Family | LFXMAX-SERIES |
| UPC | |
| SKU |
