Description

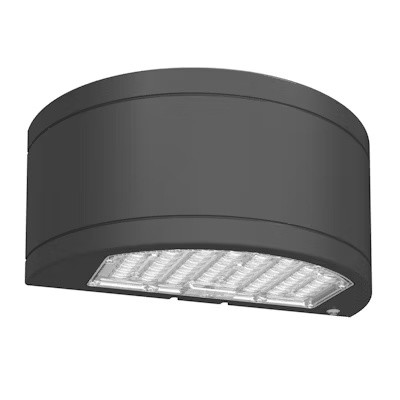

The CIRCLE-Line Half Cylinder Up/Down Wall Pack Light is a stylish and energy-efficient LED fixture designed to enhance both functionality and architectural appeal. Featuring a dual up/down lighting design, it provides balanced illumination for building exteriors, entryways, and accent lighting applications. With multi-power and selectable color temperature (TRI-CCT) functionality, this wall pack offers flexible performance to meet various lighting needs. Built with durable, weather-resistant construction and an integrated photocell for automatic dusk-to-dawn operation, it ensures reliable and long-lasting use. Available in black, white, and bronze finishes, models LED-WPUD-SC-3P80-TRI-BL-PC, LED-WPUD-SC-3P80-TRI-WH-PC, and LED-WPUD-SC-3P80-TRI-BZ-PC deliver a modern and versatile outdoor lighting solution.
Product Features
- Voltage: 120/277V
- Wattage: 48W/64W/80W
- Lumens: 6960Lm/9280Lm/11600Lm
- Color Temperature: Adjustable: 3000K/4000K/5000K
- CRI: 80+
- Dimming: 0-10V
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs
- Finish: Black / White / Bronze
- Warranty: 5 Years
- Housing: Sturdy Die-Cast Aluminum Housing Finished With Corrosion Free Powder Coat
- Light Includes: die-cast aluminum housing; photocell is included with an on/off switch; selectable light direction, up & down or down only; clear acrylic lens with optics; select-n-switch technology: 3-CCT + 3-power selectable.
- Full Cut-Off Dark Sky Compliant With Uplight Off.
- Instant-On to full brightness.
- Mounting: mounts on to standard recessed junction box
- Ideal for walkways & pathways, parking lots, hospitality, multi-family, outdoor corridors, residential, commercial and industrial places.
Specifications
| Brand | Envision |
| CRI | 80+ |
| Voltage | 120V - 347V |
| Dimmable | 0 - 10V |
| Rating | Wet Locations |
| Wattage | 48W/64W/80W |
| UPC | |
| SKU |
