Description

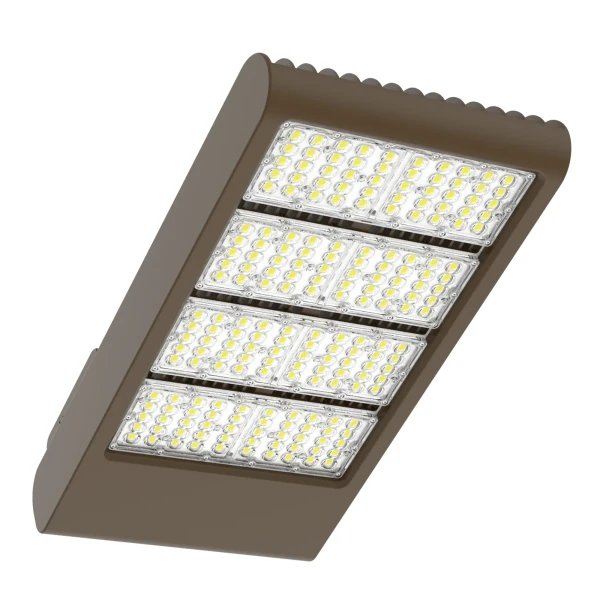

The LFX Power-Adjustable Flood/Area Light is a high-performance LED lighting solution designed for commercial, industrial, and large-scale outdoor applications. Featuring selectable wattage options of 80W/100W/150W or 200W/240W/300W, this versatile fixture delivers customizable light output to meet a variety of project requirements while maximizing energy efficiency. Designed for 480V systems and built with photocell-ready compatibility, it supports automated lighting control for enhanced convenience and reduced operating costs. With its durable construction and powerful LED technology, the LFX Series provides reliable, uniform illumination for parking lots, warehouses, roadways, building exteriors, and security lighting applications.
Product Features
- Voltage: 480V
- Wattage/Lumens: Either
- 80W/100W/150W / 21750Lm
- 200W/240W/300W / 43500Lm
- Color Temperature: Adjustable: 3000K/4000K/5000K
- CRI: 80+
- Dimming: 0~10V Dimmable
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs
- Warranty: 7 Years
- Beam Angle: 90º X 120º
- Finish: Dark Bronze
- Light Includes: die-cast aluminum housing with powder coat finish; cord type: 6’ SJTW 18/3 AWG cable; 10KV lightning surge protection; optic lens type III; multi power - the switch is on the bottom of the fixture.
- Effective Projected Areas (EPA’s) are: Front = 0.38ft ², Side = 0.30ft ², Face = 1.05ft ²
- DLC premium & LED high-lumen flood lights.
- Solid state lighting technology for long life.
- No maintenance needed and high-efficiency.
- With Snap-on & Bolt Mounting Options for One- Person Installations. Select a Mounting Option (Sold Separately)
- NEMA Twist-Lock Shorting Cap Included. Photocell Sold Separately
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Specifications
| Brand | Westgate |
| CRI | 80+ |
| Dimmable | 0 - 10V |
| Voltage | 120V - 277V |
| Product Family | LFX |
| UPC | |
| SKU |
