Description

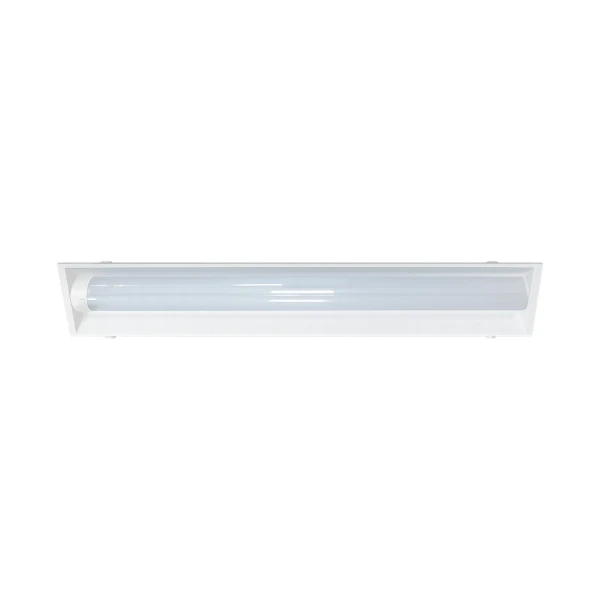

The Westgate LRT-HL-SR Series DLC Premium High-Lumen LED Retrofit Troffer Lights deliver bright, energy-efficient illumination for modern commercial and institutional spaces. Designed for retrofit applications, these sensor-ready LED troffers offer a practical lighting upgrade with flexible installation options and compatibility with supported lighting sensors. Available in 1ft x 4ft, 2ft x 2ft, and 2ft x 4ft sizes, they feature selectable wattage options of 20W/25W/30W or 20W/30W/40W, depending on the model. Ideal for offices, classrooms, healthcare facilities, and other commercial interiors, these high-lumen LED troffer lights combine versatile performance, modern design, and energy-conscious lighting for a range of applications.
Product Features
- Voltage: Either 120V/277V
- Wattage/Lumens: Either
- 20W/25W/30W / 4200Lm
- 20W/30W/40W / 5600Lm
- Color Temperature: Adjustable: 3500K/4000K/5000K
- CRI: 80+
- Dimming: 0~10V Dimmable
- Life Expectancy: 50,000 Hrs
- Warranty: 5 Years
- Finish: White
- LED Type: SMD 2835
- Light Includes: galvanized steel construction; polycarbonate lens; multi CCT & power (selectable switch on back of fixture); minimum depth of only 3” necessary to allow proper clearance and installation.
- Integrated securement tabs for securement to existing troffer housing.
- Audio-jack type socket pre-installed on the side of the panel. (see motion sensor accessories)
- Retrofit kit is powder coated after fabrication with high quality, durable finish to ensure no unfinished edges and avoid future potential of corrosion.
- Components fit together easily without the need for tools during installation. In addition the light module can be removed from below the ceiling for continent maintenance and upgrades.
Specifications
| Brand | Westgate |
| Voltage | 120V - 277V |
| Wattage | 20W/25W/30W |
| Wattage | 20W/30W/40W |
| CRI | 80+ |
| Product Family | LRT-HL-SR-SERIES |
| UPC | |
| SKU |
