Description

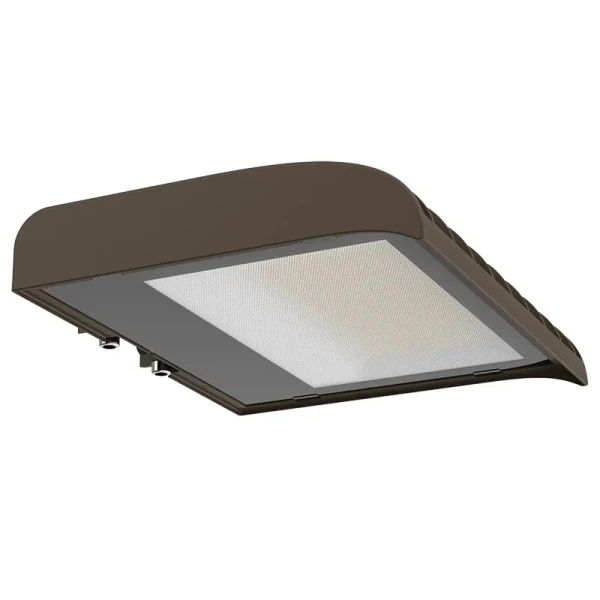

The LFXE Builder Series LED Flood/Area Light is a versatile, high-performance lighting solution designed for commercial, industrial, and outdoor environments. Available with selectable wattage options of 80W/100W/150W or 200W/240W/300W, and offered in either a fixed 5000K daylight output or selectable 3000K/4000K/5000K color temperatures, it provides exceptional flexibility to meet a wide range of lighting requirements. Featuring a Type 3 lens and an integrated photocell with disconnect switch, the LFXE Series delivers efficient dusk-to-dawn operation, uniform light distribution, and reduced energy consumption. Built with durable, weather-resistant construction and advanced LED technology, it is ideal for parking lots, roadways, warehouses, building exteriors, loading docks, and security lighting applications.
Product Features
- Voltage: Either 120V/277V
- Wattage/Lumens: Either
- 80W/100W/150W / 20250Lm
- 200W/240W/300W / 40500Lm
- Color Temperature: Either 5000K or 3000K/4000K/5000K
- CRI: 80+
- Dimming: 0~10V Dimmable
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs
- Warranty: 7 Years
- Beam Angle: 120°X 90°
- Finish: Dark Bronze
- Light Includes: die-cast aluminum housing with powder coat finish; cord type: 6’ SJTW 18/3 AWG cable; 10KV lightning surge protection; optic lens type III; photocell included (with disconnect switch); multi-power - the switch is on the bottom of the fixture.
- Effective Projected Areas (EPA’s) are: Front = 0.38ft ², Side = 0.30ft ², Face = 1.05ft ²
- Solid state lighting technology for long life, no maintenance needed and high-efficiency.
- With Snap-on & Bolt Mounting Options for One- Person Installations. Select a Mounting Option (Sold Separately)
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Specifications
| Brand | Westgate |
| CRI | 80+ |
| Dimmable | 0 - 10V |
| Voltage | 120V - 277V |
| Product Family | LFXE-SERIES |
| UPC | |
| SKU |
