Description

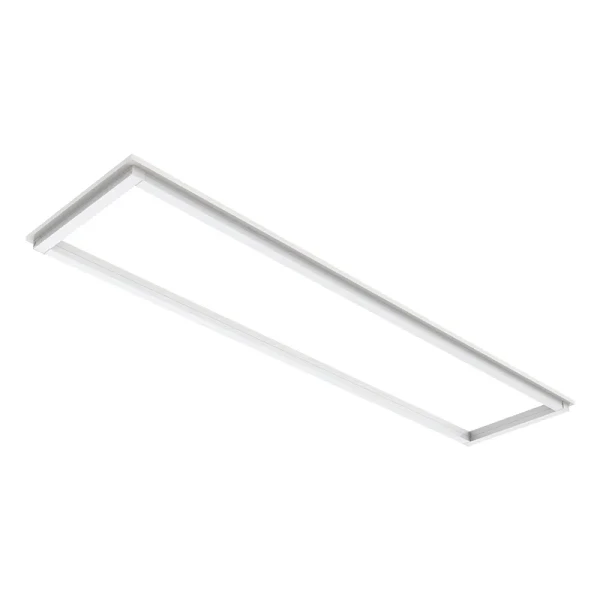

The TGLK Series Gen 2 4-Piece LED Frame Light Kit for T-Bar Grid Ceilings provides modern, energy-efficient illumination for commercial and professional indoor spaces. Designed for easy integration into suspended ceiling grids, this versatile LED frame light kit is available in 1ft x 4ft, 2ft x 2ft, and 2ft x 4ft sizes, with selectable wattage options of 17W/26W/36W, 27W/35W/40W, and 25W/35W/45W, respectively. Its sleek frame design offers a clean, contemporary appearance, making it ideal for offices, schools, hospitals, retail stores, and other commercial environments seeking flexible, efficient, and professional ceiling lighting.
Product Features
- Voltage: Either 120V/277V
- Wattage/Lumens: Either
- 17W/26W/36W / 3960Lm
- 27W/35W/40W / 3960Lm
- 25W/35W/45W / 4950Lm
- Color Temperature: Adjustable: 3500K/4000K/5000K
- CRI: 80+
- Dimming: 0~10V Driver for continuous dimming
- Life Expectancy: 50,000 Hrs
- Warranty: 5 Years
- Finish: White
- Light Includes: extruded aluminum with white painting; surge protector; multi color temperature & multi power (selectable switch in driver box); performance lens assembly delivers unique beam angles and reduces glare.
- High quality LED chips provide high efficiency, heat dissipation, stability, and lumen maintenance.
- Driver/Junction box is separate and connects to the fixture with a 3ft. dongle.
- Driver/Junction box installs on adjacent grid, on top, using your choice of T-bar bracket or Westgate T-bar bracket model (ELB-TBAR1).
- Ideal for retail, schools, offices, healthcare, conference rooms, hospitality, corridors, reception areas, foyer library.
Specifications
| Brand | Westgate |
| Voltage | 120V - 277V |
| CRI | 80+ |
| Product Family | TGLK-SERIES |
| Wattage | 17W/26W/36W |
| Wattage | 27W/35W/40W |
| Wattage | 25W/35W/45W |
| UPC | |
| SKU |
