Description

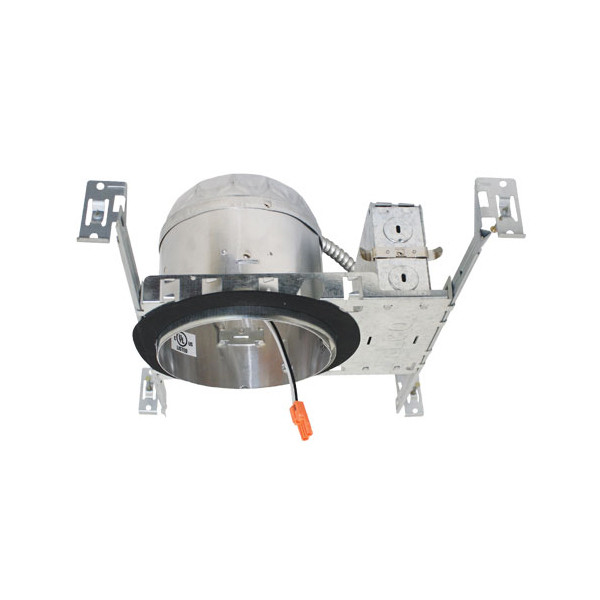

The 5” Elco Shallow Dedicated LED New Construction housings are high quality UL listed as IC Airtight unit ideal for use in insulated ceilings. Airtight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation and combustive materials, Elco IC housings are easy and quick to install. These housings can be installed in residential wood structures or commercial building drop ceilings.
Product Features
- Single wall IC Rated for use in insulated ceilings
- 120V – 17 Watt Max
- Housing with Quick Connect for easy insert installation
- Meets restricted air flow requirement (per ASTM E-283)
- Captive hanger bars span 24” can be repositioned at 90°
- Height allows for use in 2x6 construction
- Adjustable housings accommodates up to 1 ¼” ceiling thickness
- UL listed for damp location
- UL listed for wet location (with wet location inserts)
- UL listed for feed through
- UL listed for direct contact with insulation
- CA Title 24 compliant (as high efficacy luminaire)
Specifications
| Voltage | 120 |
| Voltage | 120/277 |
| Brand | Elco |
| Size | 5" |
| Rating | Wet Rated |
| Energy Star | Yes |
| Title 24 | Yes |
| Length | 8.25 in |
| Width | 5.50 in |
| Height | 5.50 in |
| UPC | |
| SKU |
