Description

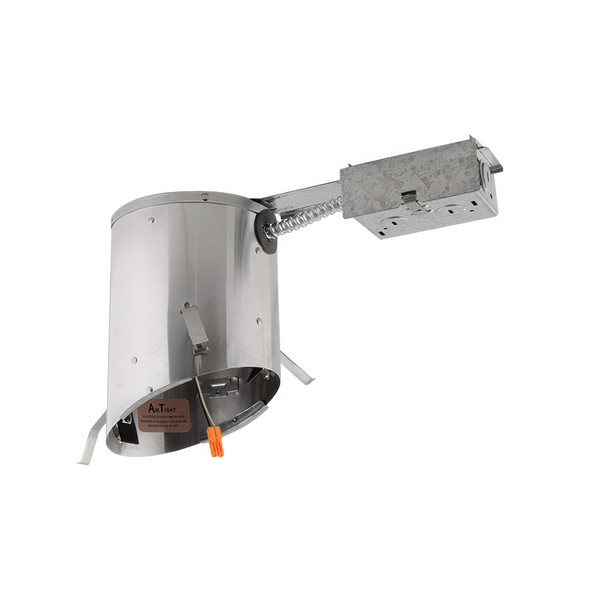

5” LED IC Airtight Sloped Ceiling Remodel Housing allows for direct contact with insulation. Designed for use in 2/12 to 6/12 sloped ceiling, housing adjusts to accommodate up to 1 ¼”” ceiling thickness. Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can easily be nailed to joists. Template for hole cutout is provided with each housing.
Product Features
- IC Rated for Direct Contact with insulation
- These housings are recommended for ceiling pitches of 2/12 to 6/12
- Housing adjusts to accommodate up to 3/4" ceiling thickness
- UL Listed for Damp Location
- UL Listed for Direct Contact with Insulation and Combustible Material
- UL Listed for Feed Through
- AirTight Per ASTM E-283
- California Title 24 (JA8-2016-E)
- ELCO Products are built to last. 5-year Limited warranty
Specifications
| Voltage | 120 |
| Brand | Elco |
| Orientation | Round |
| Size | 5" |
| Rating | Damp Rated |
| Title 24 | Yes |
| Product Family | Slant |
| UPC | 633999007059 |
| SKU | EL590RICA |
