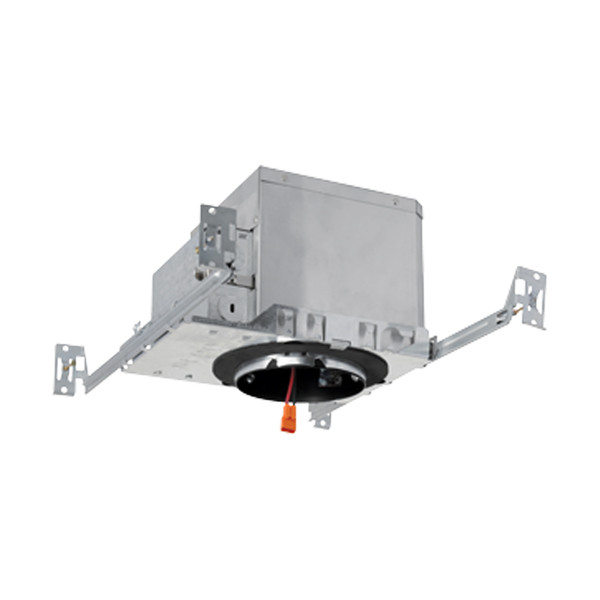

3" Elco Koto Max Adjustability IC Airtight New Construction Housing

$21.15
TOP

Description

The Max. Adjustability IC Airtight New Construction Housing is IC rated for direct contact with insulation and adjusts in frame to accomodate up to 1 1/2" ceiling thickness.

Construction:

Product Features

  • IC rated for direct contact with insulation, for us in IC or non-IC conditions.
  • Housing adjusts in frame to accomodate up to 1 1/2" ceiling thickness.
  • Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
  • Steel housing for greater heat dissipation. Stampled galvanized steel frame.

Installion: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength swivel hanger bars can easily be nailed to joists. Maximum hole cutout is 3 5/8". Suitable for T-grid and drop ceiling applications.

Junction Box: Position to accomodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed swivel hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:

  • Input Voltage: 120V AC.
  • Inherently protected.

Dimmability: based on lamp.
Lamp: designed for use with Elco 3" PEX diecast Trims and Koto LED Module.

Specifications

Voltage 120
Brand Elco
Size 3"
Rating Wet Rated
Energy Star Yes
Title 24 Yes
Product Family Koto™
Width 3.63 in
UPC 633999052639
SKU EL386ICA
