Description

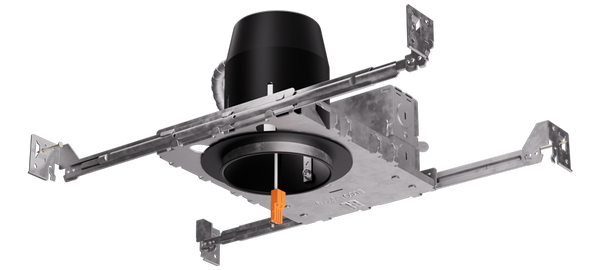

The EL390ICA-EM5 is a high-performance IC-rated, airtight LED housing designed for new construction applications where energy efficiency, safety, and versatility are critical. Engineered with precision for compatibility with high-efficacy LED modules, this "can and fan" housing delivers robust thermal management, seamless integration, and reliable performance—even in demanding environments.
Product Features
- Voltage: 120/277V
- Wattage: 14W
- Dimmability: Yes (Flicker Free LED Dimming).
- Warranty: 3 Years
- Dimmability based on lamp.
- Location Rating: Damp / Wet Locations.
- Single Wall IC Airtight Housing for use in insulated ceilings.
- Steel housing for greater heat dissipation. Stamped galvanized steel frame
- Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions
- Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars
- Trims and inserts sold separately, MR16 LED with PSA37 or 3" Insert.
- Situatable for t-grid and drop ceiling applications. See installation sheet for detailed information.
Specifications
| Dimmable | Yes |
| Brand | Elco |
| Voltage | 120 / 277 V |
| Wattage | 14W |
| Size | 3" |
| SKU | EL390ICA-EM5 |
