Description

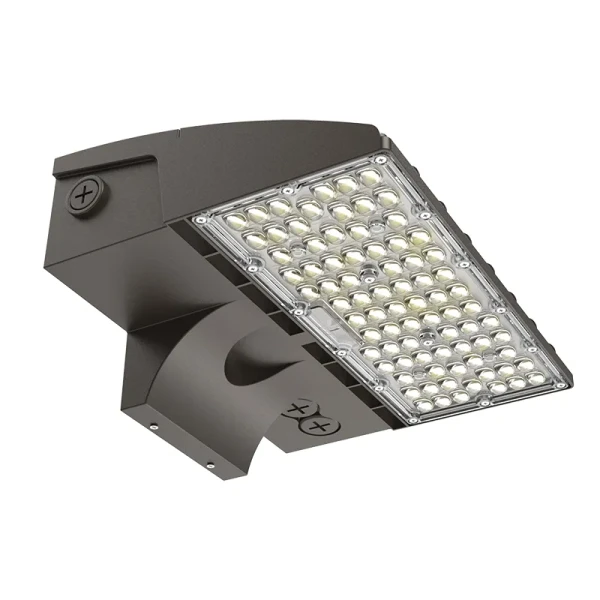

The WPCX Series X-Gen Full Cut-Off Wall Pack is a versatile and energy-efficient outdoor lighting solution designed for commercial, industrial, and security applications. Featuring adjustable wattage and selectable color temperature (CCT) settings, the WPCX-21-35W-MCTP, WPCX-36-60W-MCTP, and WPCX-60-100W-MCTP provide customizable illumination to meet a wide range of lighting requirements. The full cut-off design helps reduce glare and light trespass while delivering reliable, high-performance LED lighting for building exteriors, walkways, parking areas, and perimeter security. Combining durability, flexibility, and advanced LED technology, the WPCX Series offers a cost-effective and long-lasting solution for modern outdoor lighting projects.
Product Features
- Voltage: Either 120V/277V
- Wattage/Lumens: Either
- 21W/28W/35W / 4725Lm
- 36W/48W/60W / 8100Lm
- 60W/80W/100W / 8100Lm
- Color Temperature: Adjustable: 3000K/4000K/5000K
- CRI: 80+
- Dimming: 0~10V Dimmable
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs
- Efficacy: 135LPW
- Warranty: 7-Years
- Finish: Dark Bronze
- Full Cutoff, Dark Sky Compliant
- Light Includes: die-cast aluminum With powder coat finish (dark bronze); DC button photocell with ON/OFF switch included; high light transmittance, anti-UV and fire resistant shatterproof PC lens; multi CCT and power (switches are inside fixture).
- LED wall pack light series can be widely used as exterior or interior LED lighting for hotels, garages, commercial buildings, public areas, schools and hospitals, etc.
Specifications
| Dimmable | 0 - 10V |
| Voltage | 120V - 277V |
| Brand | Westgate |
| Product Family | WPCX-SERIES |
| CRI | 80+ |
| UPC | |
| SKU |
