Description

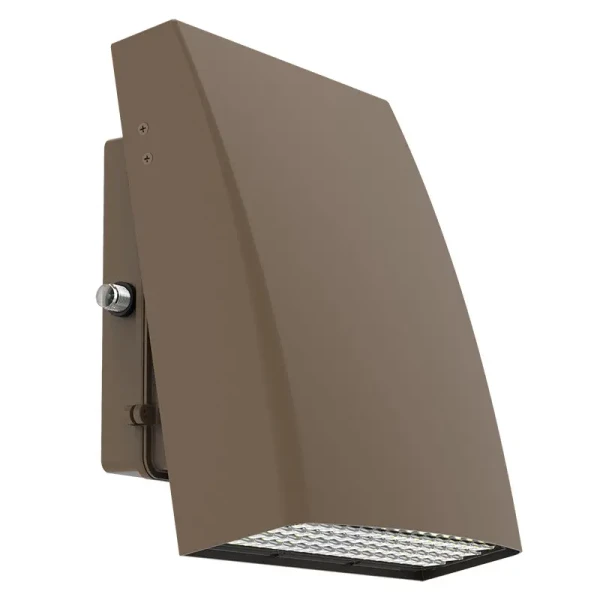

The LWAX-P Series Gen. 2 Adjustable Wall Pack is a versatile and energy-efficient outdoor lighting solution designed for commercial, industrial, and security applications. Available in multiple wattage configurations, this advanced LED wall pack features an adjustable design that allows for customized light distribution to improve visibility around building exteriors, walkways, entrances, and parking areas. Offered in durable white and black finishes, the LWAX-P Series combines modern styling with reliable performance, delivering long-lasting illumination while helping reduce energy and maintenance costs. Its rugged construction and flexible lighting capabilities make it an ideal choice for a wide range of exterior lighting projects. Shroud sold separately.
Product Features
- Voltage: Either 120V/277V
- Wattage/Lumens: Either
- 15W/20W/30W/50W / 6250Lm
- 50W/80W/120W / 15000Lm
- Color Temperature: Adjustable: 3000K/4000K/5000K/5700K
- CRI: 80+
- Dimming: 0~10V Dimmable
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs
- Beam Angle: 80° x 100°
- Light head can be adjusted from 0° to 90°.
- Warranty: 7-Years
- Efficacy: 125LPW
- Finish: Bronze / White / Black
- Full Cutoff, Dark Sky Compliant.
- Light Includes: high light transmittance, anti-UV and fire resistant shatterproof PC lens; die-cast aluminum with powder coat finish; DC button photocell; multi CCT and power (switches are inside fixture); four 1/2” knockouts: 1 top. 1 on each side, 1 back.
- This product works with: Westgate Shroud used with Westgate 120V/277V LED Archi Lux Pack Outdoor Lighting Series.
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Specifications
| Dimmable | 0 - 10V |
| Voltage | 120V - 277V |
| CRI | 80+ |
| Brand | Westgate |
| Product Family | LWAX-P-SERIES |
| UPC | |
| SKU |
