Description

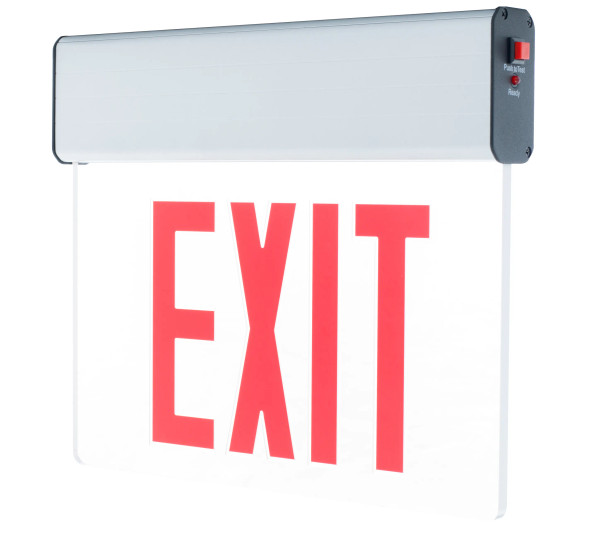

The XE-Series Edge Lit LED Exit Sign is a sleek, energy-efficient emergency lighting solution designed to deliver maximum visibility with a modern aesthetic. Featuring advanced edge-lit LED technology, the XE-Series ensures bright, uniform illumination while consuming minimal power, making it an ideal choice for commercial buildings, offices, retail spaces, and public facilities. Its slim, contemporary design seamlessly integrates into any interior, while durable construction guarantees long-lasting performance and reliability in critical situations. Easy to install and compliant with safety standards, the XE-Series Edge Lit LED Exit Sign provides dependable guidance during emergencies, enhancing both safety and style. Perfect for businesses seeking a cost-effective, low-maintenance exit signage solution, this LED exit sign combines innovation, efficiency, and durability in one high-performance product.
Product Features
- Voltage: Either: 120V/277V
- Wattage: 4.5W(Red) & 4.8W(Green)
- Location Rating: Damp Location
- Warranty: 3 Years
- Specification grade exit with emergency battery backup (90 minutes)
- Extruded aluminum canopy with clear acrylic panel
- Universal mounting plate for back, top, or side mounting
- Energy efficient LED panel, 4.5 W (red) 4.8 W (green), 25-year rated 120/277-volt operation
- Single or double face (Mylar insert used for double face*)
- Left or Right arrow
- 4.8V Ni-Cad battery for long life (0-50 deg C)
- Low profile compact design
- 90-minute EM-rated with push style test switch and red indicator light mounting accessories included.
- Lens: Red / Green
- Trim plate housing: Aluminum
- Operating temperature: 68°F ~ 122°F
Specifications
| Brand | Westgate |
| Product Family | XE-SERIES |
| Voltage | 120V - 277V |
| Wattage | 4.5W |
| Wattage | 4.8W |
| UPC | |
| SKU |
