Description

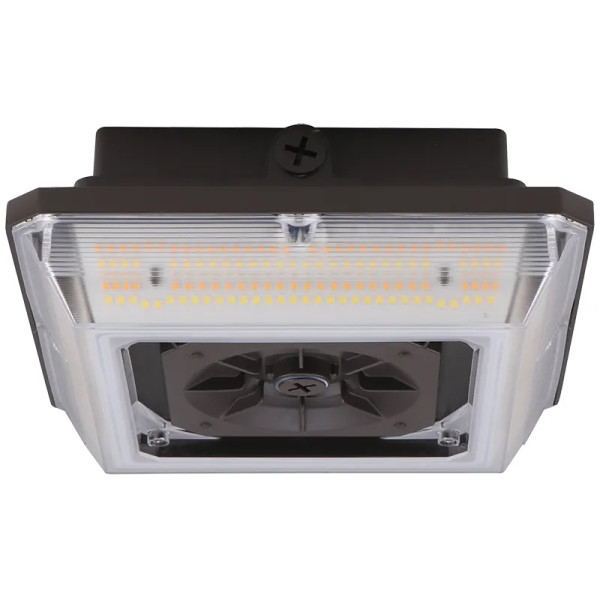

The CAX Series Angled-Beam Garage Canopy Lights are engineered to provide targeted, high-performance illumination for garages, canopies, parking areas, and commercial spaces. Featuring an angled-beam design, these energy-efficient LED fixtures direct light precisely where it’s needed to enhance visibility, safety, and coverage. With multi-wattage adjustability and selectable color temperature, they offer flexible lighting control to suit a variety of applications. Built for durability and long-lasting performance, the CAX Series delivers bright, uniform lighting while helping reduce energy and maintenance costs.
Product Features
- Voltage: Either 120V or 277V
- Wattage / Lumens: Either
- 20W/30W/45W / 6300Lm
- 30W/45W/60W / 8400Lm
- 40W/60W/75W / 10500Lm
- 60W/75W/90W / 12600Lm
- Efficacy: 140LPW
- Color Temperature: 3000K/4000K/5000K
- CRI: 80+
- Beam Angle: 150°
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs.
- Warranty: 7 Years
- Dimming: 0~10V Dimmable
- Lens: Prismatic Polycarbonate Lens
- Housing: Die-Cast Aluminum With Prismatic Polycarbonate Lens Redesigned For LED
- Light Includes: Four 1/2” threaded hubs located on four sides of the housing.
- Sensor-Ready: 3-pin socket pre-installed.
- Factory-Installed Options: battery backup.
- Multi color temperature & multi power (selectable switch located on the housing).
- Ideal for indoor parking lots, commercial buildings, schools, warehouse, retail centers, apartment, complexes.
Specifications
| Brand | Westgate |
| CRI | 80+ |
| Voltage | 120V - 277V |
| Dimmable | Yes |
| UPC | |
| SKU |
