Description

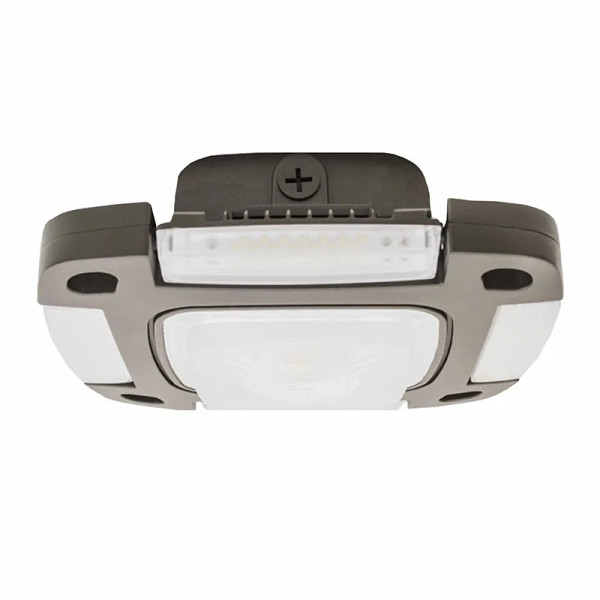

The CDX Series Pentalux LED Adjustable Canopy Light is designed to provide powerful, flexible illumination for canopies, garages, parking structures, and commercial outdoor spaces. Featuring an adjustable design, it allows precise light direction to improve visibility, safety, and coverage where it’s needed most. Built with energy-efficient LED technology, this durable fixture delivers bright, uniform lighting while reducing energy consumption and maintenance costs. Ideal for both residential and commercial applications, the CDX Series offers a reliable, modern lighting solution with long-lasting performance.
Product Features
- Voltage: Either 120V or 277V
- Wattage/Lumens: Either
- 35W = 4600Lm
- 55W = 7250Lm
- Efficacy: 131Lm/W
- Color Temperature: Either 3500K, 4000K or 5000K
- Finish: Bronze / White
- CRI: 80+
- Dimming: 0~10V Dimmable
- Location Rating: Wet Locations
- Life Expectancy: 70,000 Hrs.
- Warranty: 7 Years
- Lens: Prismatic Polycarbonate Lens
- LED type/brand: SMD2835 (0.5W)
- Adjustable side light angle: 160°
- Housing: Die-Cast Aluminum
- Light Includes: 1/2” threaded hubs located on two sides of the housing.
- Four 1/2” hubs: 1 top, 1 on each side, 1 rear
- Designed for 9 to 16-foot mounting heights.
- No UV or IR in the beam.
- Factory-Installed Options: Sensor, Emergency Backup battery.
- Ideal for general site lighting, loading docks, warehouses, gas stations, parking areas, garages, complexes and commercial buildings.
Specifications
| Brand | Westgate |
| Dimmable | Yes |
| Voltage | 120V - 277V |
| CRI | 80+ |
| UPC | |
| SKU |
