Description

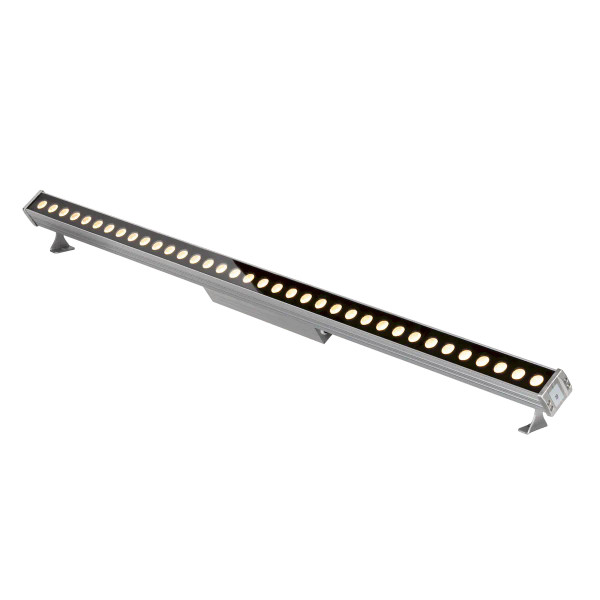

The Corsa Wall Grazer 3000K 4Ft is a sleek and powerful linear wall wash fixture designed to deliver high-impact architectural illumination for both indoor and outdoor applications. Featuring bright 3000K warm white LEDs, the CRSA-G4-30K-SV creates smooth and vibrant wall grazing effects ideal for facades, landscapes, accent walls, and commercial lighting projects. Built with a durable aluminum alloy housing and a protective polycarbonate lens, this low-profile LED fixture offers long-lasting performance, reliability, and versatility in demanding environments. Combining modern design with energy-efficient illumination, the Corsa Graze is an excellent solution for professional architectural lighting applications.
Product Features
- Voltage: Either 120V/277V
- Wattage: 40W
- Lumens: 3600Lm
- Color Temperature: 3000K
- CRI: 80+
- Dimming: 0-10V Dimmer
- Life Expectancy: 30,000 Hrs
- Finish: Silver
- Beam Angle: 25°
- Length: 48 Inch
- Light Includes: features built-in driver and 5ft 3x18AWG power cable; durable aluminum alloy housing with enamel finish and acrylic lens; integrated mounting holes in base/leg brackets with adjustable tilt design for flexibility. Please see spec sheet for more information on what comes with it.
- Max Power Link: 15 Units @ 120V AC / 34 Units @ 277V AC
- Max Signal Link: 27 Units with 0-10V Dimmers (See Dimmer’s Instructions)
- CRSA-G4 fixtures include: attached 20in input/output power cables with male/female connectors, loose 5ft power cable conkit to 120V AC 3-prong plug, attached 20in signal input/output cables with male/female connectors.
Specifications
| Brand | American Lighting |
| CRI | 80+ |
| Voltage | 120V - 277V |
| Dimmable | Yes |
| Wattage | 40W |
| Product Family | CRSA-G4 Series |
| SKU | CRSA-G4-30K-SV |
