Description

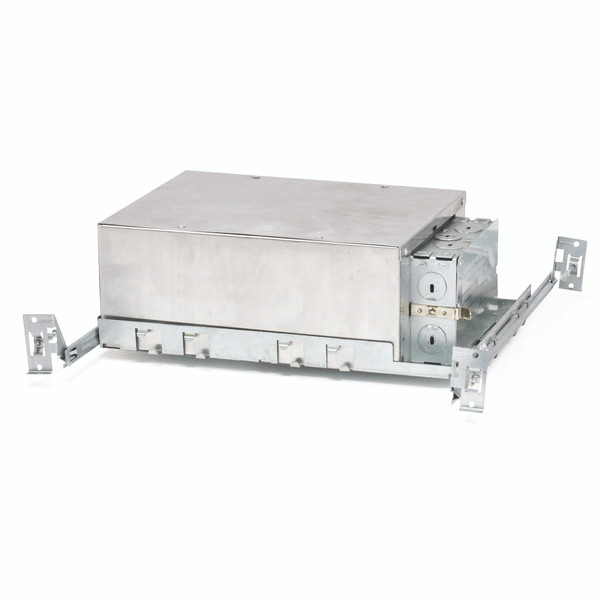

Iolite dedicated LED New Construction housing features aluminum construction. New construction housing for use in insulated ceilings can be in direct contact with thermal
insulation. Rated for use with Iolite Series fixture. Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be re-positioned 90º perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Product Features
- 120V Triac dimming
- Over 80% energy savings when compared to incandescent
- 800 to 600 Lumens
- Aluminum IC & Air-Tight Rated Housings
- Dimmable
- LED Driver mounted on J-Box cover
- 5-year limited warranty
- New construction housing include 24-1/2" hanger bars w/alignment feet nail & scooted for T-Bar installation.
- cULus and Energy Star listed for damp location
- cULus and Energy Star listed for wet location using specific trims
Dimension
H: 4-1/2" W: 7-3/4" L: 12-1/2" Cut out: 3"
Specifications
| Voltage | 120 |
| Voltage | 120/277 |
| Brand | Nora Lighting |
| Orientation | Round |
| Size | 2" |
| Rating | Wet Rated |
| Energy Star | Yes |
| Title 24 | Yes |
| Product Family | Iolite |
| Length | 12.00 in |
| Width | 7.63 in |
| Height | 4.00 in |
| UPC | 732180312221 |
| SKU | NHIOICD-28LE4 |
