Description

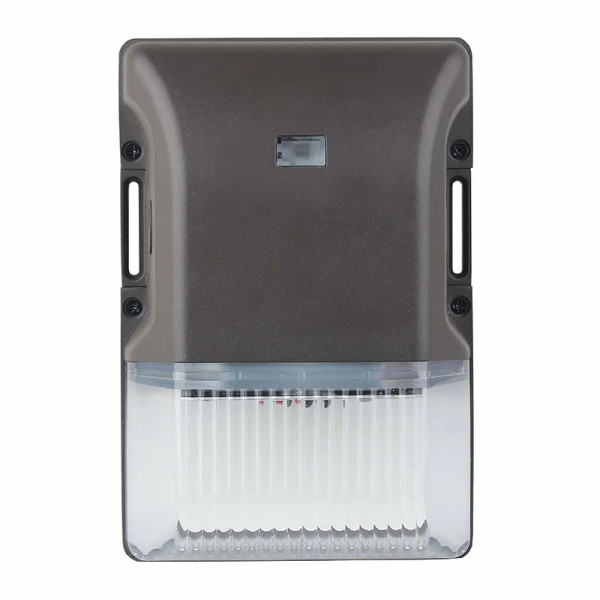

The Small LED Non-Cutoff Wall Packs from Westgate, are compact exterior fixtures designed to provide reliable area and security lighting with built-in dusk-to-dawn control. These wall packs feature selectable wattage and selectable color temperature, allowing flexibility to dial in the right light output and color on site. The integrated photocell automatically turns the light on at night and off during the day for added energy savings and convenience. With a durable housing and non-cutoff light distribution, they are well suited for building perimeters, walkways, loading areas, and general outdoor applications where consistent illumination and easy installation are key.
Product Features
- Voltage: 120-277V AC, 60Hz
- Wattage/Lumens: Either
- 8W/12W/15W = 1,080Lm/1,650Lm/2,025Lm
- 15W/20W/30W = 2,025Lm/2,700Lm/4,050Lm
- Color Temperature: Adjustable: 3000K/4000K/5000K
- CRI: 70+
- Dimming: 0-10V
- Location Rating: Wet Locations
- Lifetime: 70,000 Hrs.
- Includes Pre-wired Photo Electric Control (Dusk to Dawn Photocell)
- Multi-Power (The switch is inside the fixture)
- Beam Angle: 100°
- Back plate: Die-cast aluminum
- IP65
- 7-Year Warranty
Specifications
| Voltage | 120/277V |
| Brand | Westgate |
| CRI | 70+ |
| Life | 70,000 Hrs. |
| Rating | Wet Locations |
| UPC | |
| SKU |
